Mitsubishi FR-F800-E Series with Built-in Ethernet Communication
The FR-F800-E is a pump and fan control VFD that combines performance, accuracy and reliability with embedded Ethernet based communications to enhance overall system flexibility. With 100Mbps Ethernet TCP/IP and BACnet/IP connectivity as the standard, the FR-F800-E provides an increased ability for remote system monitoring, parameter adjustments and easy integration into existing network environments.
KEY BENEFITS:
- Ethernet Communications as Standard – Communicate with Modbus TCP/IP or CC-Link IE Field Basic communications networks at a speed of 100Mbps without the need for an extra option card.
- Automatic IP Address Detection – Automatically detect the IP address of all connected drives, quickly enabling connection and programming using FR-Configurator software.
- Remote Operation – Communicate with a drive remotely for commissioning, monitoring or troubleshooting anytime from anywhere.
- CC-Link IE Field Network Basic – Fast and dependable connection to Mitsubishi Electric PLCs, servos, and robots through the CC-Link IE Field basic system for a complete factory solution.
- Multiple Protocol Capability – Network option cards offer connection to other drive based networks and a higher level information system.
- Drive to Drive Communications – Utilize the internal PLC to communicate without a master PLC controller allowing the drives to work together as a team.
- Reduced Cost – Standard Ethernet connectivity without add-on modules.
The Perfect Drive for Pumping Applications
NETWORK CONNECTIVITY
The embedded web server allows the user to connect to the drive using a standard web browser on any device for monitoring the drive status and adjusting parameters.
- No need for special software
- Connect directly over Ethernet cable or remotely over VPN
- Direct connection for control by SCADA systems
- Remote diagnosis and rectification of faults
- Improved response for maintenance

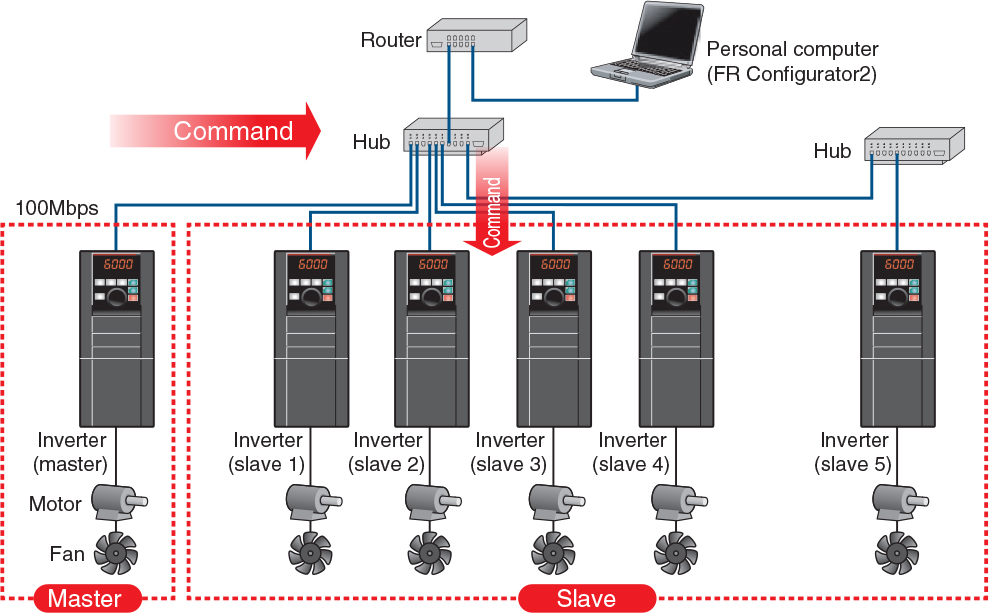

DRIVE TO DRIVE COMMUNICATION
Drive to Drive communication is possible because the PLC functions in the FR-F800-E allows the master inverter to send commands for controlling multiple slave inverters connected to the Ethernet network. When the FR-F800-E is used with FR-Configurator2 software, users can
search the network for connected drives, and establish a connection that allows for faster and easier network configurations, drive set-ups and system monitoring.
- Direct connection to the TCP/IP network by cable or WiFi
- System scan to identify FR-F800-E drives on the network
- Full access to the drive for parameter adjustment and monitoring
- Upload and download of PLC function program and parameter sets
DRIVE TO DRIVE NETWORKING
STANDARD FR-F800-E SERIES LINEUP
