HIWIN
HIWIN Corporation is a global manufacturer and distributor of Linear Motion Control products including Ballscrews, linear guideways, linear actuators, linear motors, single axis robots, AC Servo motors & Drives, Positioning Measurement Systems and Crossed Roller Bearings
Ballscrews
Ballscrews convert rotary motion into linear motion, and are most commonly used in industrial machinery and precision machines. Hiwin Corporation provides a wide range of ballscrew configurations to satisfy your special application requirements. Hiwin has the capability of producing JIS C0 class ground ballscrews, and DIN 5 class (up to 23 microns) for precision rolled ballscrews. Ballscrew O.D. ranging from 4mm to 120mm, and with Dm-N values up to 220,000
Linear Guideways
Linear guideways provide a type of linear motion that utilizes re-circulating rolling elements between a profiled rail and a bearing block. A linear guideway can achieve high precision and greatly enhanced moving accuracy. Hiwin Corporation offers multiple linear guideway series and each series features different options for sizes, loading capabilities, accuracies, and more.
Linear Motors
HIWIN Corporation linear motors are direct drive, plug and play solutions. Linear motors are capable of fast accelerations and high speeds, while providing unmatched precision and accuracy. Aside from single axis linear motors, these stages can be combined together to form cross tables or even gantry systems.
Standard Stock Ballscrews
HIWIN Corporation offers a wide range of preloaded and non-preloaded rolled ballscrews, in-stock at our U.S. headquarters in Elgin, IL. Customers can take advantage of having their ballscrews machined at our state-of-the-art facility or have standard length, un-machined ballscrews shipped within 10 business days.
View a downloadable PDF drawing >>>
Linear Actuators
Hiwin Corporation can supply a complete actuator solution that includes actuators, controllers and keypads for a single or multiple axis system. Hiwin offers a wide range of linear actuator designs to fit your specific application.
Single Axis Robots
HIWIN Corporation's single axis robots utilize a combination of a motor driven ballscrew or belt and linear guideway system. These compact and lightweight units are customizable and can be easily transformed into a multi-axis system, making them suitable for a wide range of industrial applications.

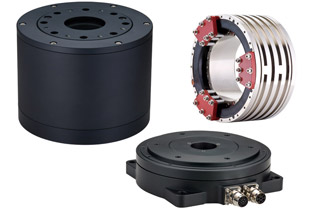

Torque Motor Rotary Tables
HIWIN Corporation torque motor and rotary tables ensure excellent acceleration capabilities and high precision uniform movements. Hiwin torque motor and rotary tables are backlash free, extremely rigid, optimized for high torques, have robust dynamics and are especially well suited for tasks in a wide range of automation processes. Various sizes in diameter and height are available with the option to add a servo drive for a complete plug and play solution.
Torque Motor Rotary Tables >>>
AC Servo Motors and Drives
HIWIN Corporation offers AC servo motors and stepper motors, which when combined with Hiwin's product line are great solutions for converting rotary motion into linear motion. These motors complement our product offerings and can be a complete linear motion solution when our servo drive is incorporated. HIWIN's servo drive solution is compatible with: high performance drives for linear motors, shaft motors, torque motors, and AC servo motors.
AC Servo Motors and Drives >>>
Positioning Measurement Systems
HIWIN Corporation's positioning measurement system integrates a linear guideway with a magnetic encoder. This solution offers the high stiffness and rigidity of a guideway combined with the high precision of a magnetic encoder. The encoder is a non-contact measuring sensor and the magnetic strip is embedded to prevent possible damage caused from external debris, these features ensure a longer service life.
